Six-stage Andersen Airborne Microbial Sampler

Application

Bioaerosol Sampling, Particle Size Analysis, etc.

TEL86-10-56370031

Description

Features

Specification

Standards

Video

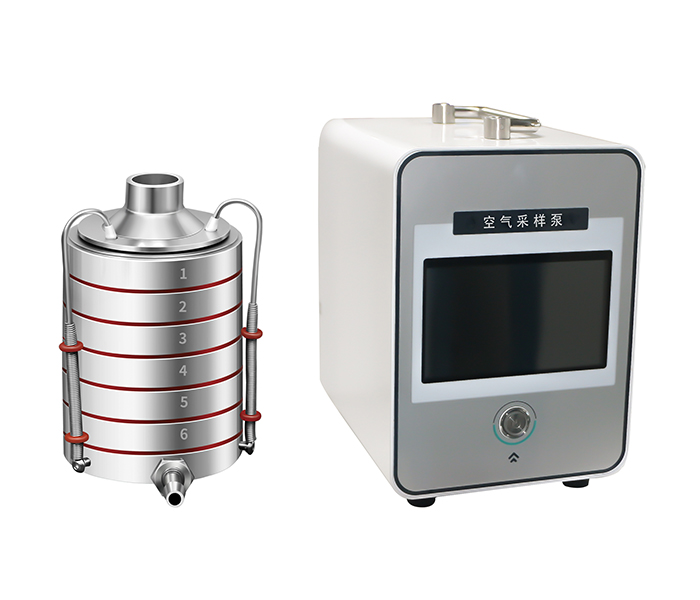

The instrument is used for bioaerosol sampling and particle size analysis. It consists of a six-stage cascade impactor, sampling pump and accessories. Impactor has 6-stage disc impactors with different diameters, each plate has 400 small, precisely sized holes located in circular and decreasing in size from stage to stage. The standard sampling flow rate is 28.3L/min. When airflow containing microbial particles enters the top sampling port, microbial particles of different sizes will be impacted on the corresponding agar surface according to aerodynamic characteristics.

Used to collect bioaerosols.

Sampling flow rate 28.3L/min with the following particle size distribution for each sampler stage:

Stage

Number of Nozzles

Cutting Diameter (μm)

1

400

>7

2

400

4.7-7

3

400

3.3-4.7

4

400

2.1-3.3

5

400

1.1-2.1

6

400

0.65-1.1

GB∕T 39990-2021 Particulate─Bioaerosol sampler─Technical specification
