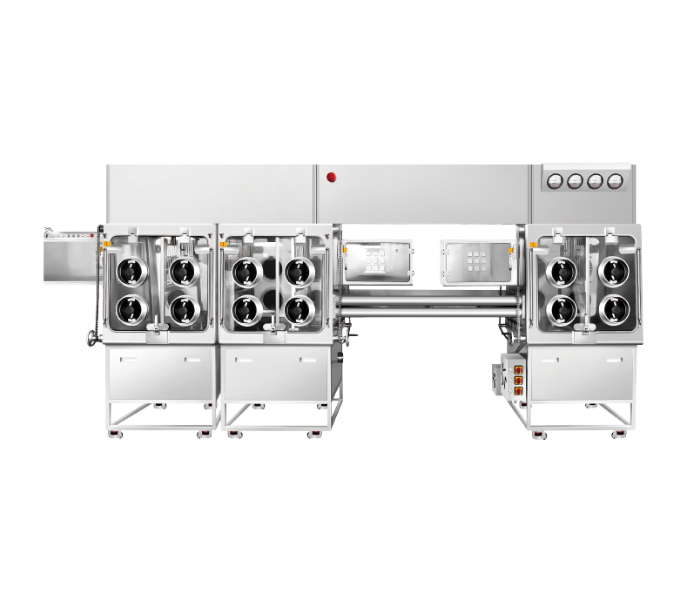

Biosafety Pathogen Airborne Infection Device

Application

Studies of pathogen-transmitted infections

TEL86-10-56370031

Description

Features

Specification

Standards

Video

Integrated with Class III BSC cabinet to ensure personnel and environment safety, the instrument is mainly used for research of viruses, bacteria and other biological aerosol or droplet infections between rodents and medium-sized animals. It can perform infection tests via direct contact, short-distance (5cm) droplet, and long-distance (1.5m) aerosol among rodents and medium-sized animals e.g., monkeys, guinea pigs, ferrets, rats, mice, etc. It also can be used to perform scientific tests such as transmitted infections modeling and mechanism studies.

It can perform airborne infection tests on rodents and medium-sized animals e.g., monkeys, guinea pigs, ferrets, rats, and mice.

Three infection tests of direct contact transmission, droplet transmission and aerosol transmission can be performed.

Meet long-term feeding requirements of laboratory animals.

With rich functions of environmental monitoring and biological sampling.

With smart control software and system.

For biosafety protective tightness requirements of Class III BSC cabinet working area, it conforms to RB/T 199-2015 Technical code for evaluating biosafety performance of laboratory equipment.

Class III BSC cabinet adopts HEPA filtration for air inlet and double filtration for outlet. HEPA filter has a sterilization port and leakage detection port.

The corner of Class III BSC cabinet adopts large arc design with sterilization port.

Applicable animals

Monkeys, guinea pigs, ferrets, rats, mice (as requested)

Droplet transmission distance

5cm

Aerosol transmission distance

1.5m

Number of animals in direct contact transmission group

4-5 guinea pigs (other animals can be customized)

Number of animals in droplet transmission group

1-2 guinea pigs (other animals can be customized)

Number of animals in aerosol transmission group

1-2 guinea pigs (other animals can be customized)

Transmitted airflow

20-100L/min adjustable

Bio-sampling flow

28.3L/min

Environmental parameters monitoring

Oxygen, carbon dioxide, ammonia, temp, humidity, etc.

RB∕T 199-2015 Technical code for evaluating biosafety performanceof laboratory equipment

GB 14925-2010 Laboratory animal-Requirements of environment and housing facilities
