Hand Particle Counter

Application

Clean environments such as electronics, semiconductor, LCD panel, aerospace, precision machining, new materials, scientific research institutes, as well as clean workshops and laboratories in the fields of pharmaceuticals, optics, chemistry, food, cosmetics, and biological products.

TEL86-10-56370031

Description

Features

Specification

Standards

Video

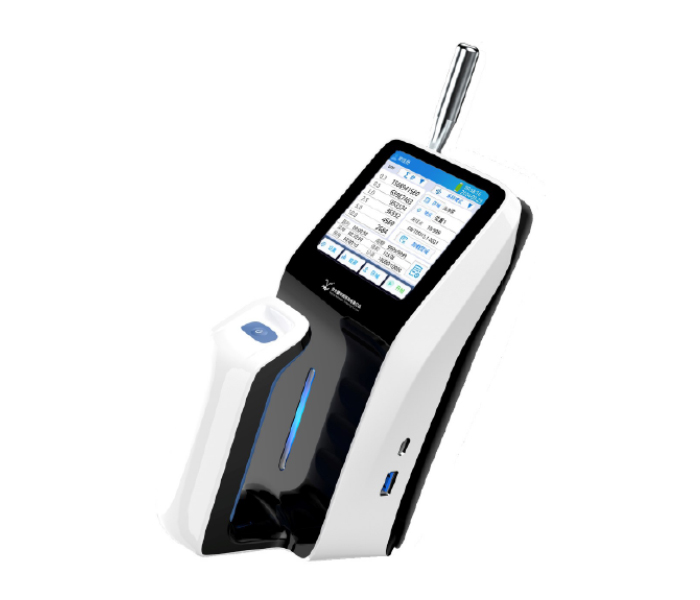

As a specialized handheld testing instrument, model HRH-LPC1301 particle counter can be used to measure and analyze the size and number of dust particles per unit volume of air in clean environments. With built-in domestic and international clean-room standards, clean level of the clean environment can be determined. The counter is capable of measuring the particle size of 6 channels (expandable to 8 channels) at the same time, which ensures the data comprehensiveness and accuracy.

Three levels of user permission with audit trail function.

200 zones can be set up with 999 locations per zone.

Report issue and UCL calculations are in compliant with 8 domestic and international cleanroom standards.

Alarm thresholds can be set, and different frequency beep alarms can be realized.

With a large storage capacity, the data can be reviewed and exported.

Equipped with an external Bluetooth thermal printer, real-time printing test results, data records, test reports, etc.

Built-in high-precision flow sensor and high-performance sampling pump, the sampling flow self-adjustment function ensures flow rate stable.

4-inch high-resolution colorful touch screen, easy to operate.

Handheld design, easy to carry.



Sampling flow rate

2.83L/min

Battery duration

>5 hrs

Dimensions (L*W*H)

140mm x 120mm x 282mm

Weight

1.3 kgs

Particle Size Channel

0.3/0.5/1.0/2.5/5.0/10.0um

Sampling Mode

Sample, Scan, Zero, Purge

Log

Min. 10000 records, which can be exported to USB disk.

Data storage

10000 records, can be exported to USB disk.

Printer

Bluetooth thermal printer can be connected

Light source

Laser

Max. sampling concentration

35000pcs/L

Working Environment

Temp: 10~35℃

Humidity: 20%~75%RH Atmosphere Pressure: 86~106Kpa

Communication

USB/Ethernet

 GB/T25915.1-2021; GB50073-2013; ISO14644-1 1999; ISO14644-1 2015; YY 0033-2000; China GMP; EU GMP; FED 209E
