Portable Particle Counter

Application

Clean environments such as electronics, semiconductor, LCD panel, aerospace, precision machining, new materials, scientific research institutes, as well as clean workshops and laboratories in the fields of pharmaceuticals, optics, chemistry, food, cosmetics, and biological products.

TEL86-10-56370031

Description

Features

Specification

Standards

Video

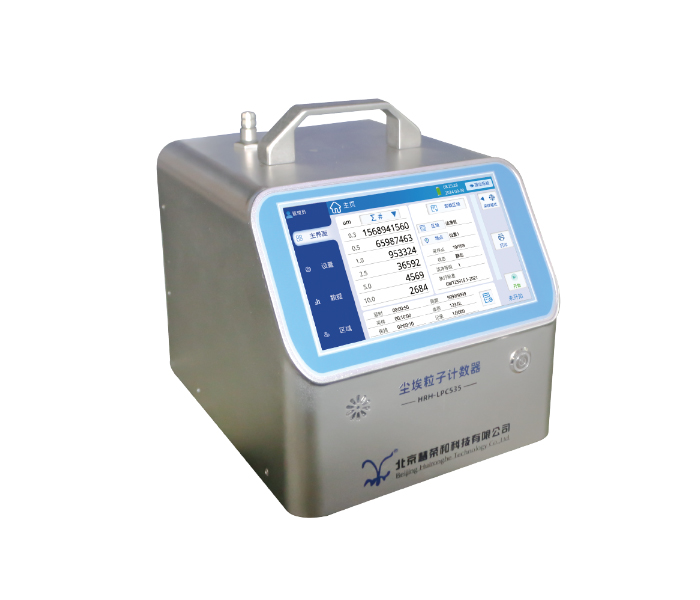

As a specialized testing instrument, the model HRH-LPC5 series particle counter can be used to measure and analyze the size and number of dust particles per unit volume of air in clean environments. With built-in domestic and international clean-room standards, the clean level of the clean environment can be determined. Moreover, the series has three flow rate specifications of 28.3L, 50L and 100L, suitable for all clean environment, ranging from the primary to the advanced. The counter is capable of measuring the particle size of 6 channels (expandable to 8 channels) at the same time, which ensures the data comprehensiveness and accuracy.

Three levels of user permission with audit trail function.

200 zones can be set up with 999 locations per zone.

Report issue and UCL calculations are in compliance with 8 domestic and international cleanroom standards.

Alarm thresholds can be set, and different frequency beep alarms can be realized.

With a large storage capacity, the data can be reviewed and exported.

Equipped with an external Bluetooth thermal printer, real-time printing test results, data records, test reports, etc.

Built-in high-precision flow sensor and high-performance sampling pump, the sampling flow self-adjustment function ensures the flow rate is stable.

4-inch high-resolution colorful touch screen, easy to operate.

SS304 housing can be wiped with common sterilizers.

Handheld design, easy to carry.





HRH-LPC5301

HRH-LPC5305

HRH-LPC5310

Sampling flow rate

28.3L/min

50L/min

100L/min

Battery duration

>6 hrs

>3 hrs

Dimensions (L*W*H)

232 x 203 x 226mm

Weight

6.3 kg

Particle Size Channel

0.3/0.5/1.0/2.5/5.0/10.0um

Sampling Mode

Sample, Scan, Zero, Purge

Log

Min. 10000 records, which can be exported to USB disk.

Data storage

10,000 records, can be exported to USB disk.

Printer

Built-in thermal printer can be connected

Light source

Laser

Max. sampling concentration

35000pcs/L

Working Conditions

Temp: 10~35℃

Humidity: 20%~75%RH

Atmosphere Pressure: 86~106Kpa

Communication

USB/Ethernet/RS485



 GB/T25915.1-2021; GB50073-2013; ISO14644-1 1999; ISO14644-1 2015; YY 0033-2000; China GMP; EU GMP; FED 209E.

Prev：Bioaerosol Alarm Next：Hand Particle Counter
Back

More Products

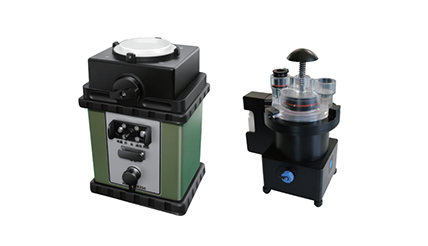

Bioaerosol Alarm

Based on laser-induced intrinsic fluorescence technology, model HRH-BAA01 bioaerosol alarm monitors real-time changes of

Bioaerosol Alarm

Based on laser-induced intrinsic fluorescence technology, model HRH-BAA01 bioaerosol alarm monitors real-time changes of

+

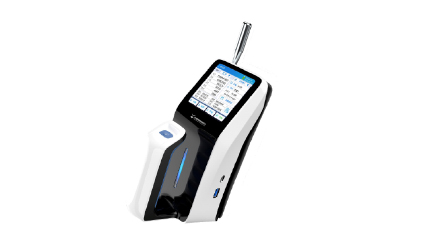

Hand Particle Counter
