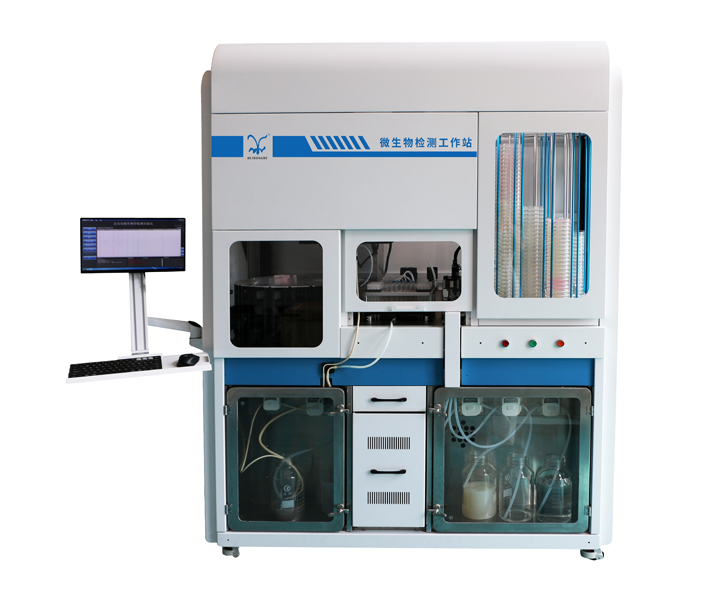

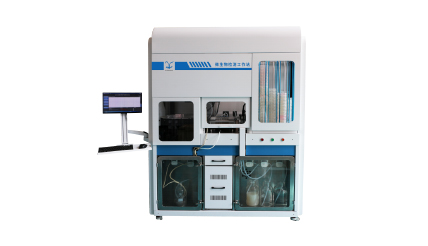

Fully Automated Food Microbiology Station

Application

 The system can automatically complete the determination of total colony count, coliform count, bifidobacteria test, Staphylococcus aureus test, Bacillus cereus test, Clostridium perfringens test, bifidobacteria test, lactobacillus test, Enterobacteriaceae test, Listeria monocytogenes test, molds and yeast counts, etc.

TEL86-10-56370031

Description

Features

Specification

Standards

Video

Designed for food microbiology tests, the workstation automates the entire process of sterile microbiology testing. It can process 20 samples at one time, up to 3 bacteria pouring methods and 1 spreading method can be performed. It solves the existing problems of testing time, sample quantity, sensitivity and operator contamination in traditional microbiology testing methods.

1. Fully automated design: with built-in standard sample preparation programs for multi-species bacteria testing, the instrument could complete the whole process automatically after the user places samples and consumables well (Petri dishes, tubes, etc.).

2. Code scanning module: automatically identifies the QR code/barcode on the sterile bag, enters sample information into the system, and determines the specific programs.

3. Petri dish storage module: up to 396 empty and agar-filled Petri dishes can be stored to meet the spreading and pouring method requirements.

4. Liquid flapping and homogenizing module: dilute the samples with 10 times liquid, then homogenize the sample by auto-flapping. The integrated heat-sealing function retains the original homogenizing liquid.

5. Gradient dilution module: perform 10, 100, 1000 times gradient dilution for 20 samples. Cross-contamination is avoided by adopting 5ml disposable pipette tips.

6. Agar thermostatic function: magnetic stirring and thermal insulation functions ensure agar does not solidify or deposit. The pipeline is easy to dismantle and sterilize.

7. Pipetting module: with high precision, cross-contamination is avoided by adopting 5ml disposable pipette tips.

8. Bacterial spreading module: rotary and uniform spreading for each sample by an individually soft spreading stick to avoid cross-contamination and increase efficiency. After spreading, the agar can be overlaid by the top medium.

9. Agar filling module: up to 3 kinds of agar can be filled and shaken, and multi-species bacteria can be performed in one test. Working under metal bath insulation, the filling tube is reusable and easy to dismantle to sterilize.

10. Robotic arm:2 sets of high-precision robotic arms with intelligent control, the program centralizes the scheduling of all modules to improve test efficiency.

11. Inkjet printing module: inkjet prints the information on Petri dishes, which makes it easy to distinguish the sample, gradient, parallel sample and other information.

12. UV sterilization: UV sterilize the system to prevent airborne bacteria contamination.

13. Aseptic environment: a laminar flow hood is set on top of the equipment, and the internal micro-positive pressure of the system ensures aseptic.

14. Multi-terminal remote monitoring: the software’s main interface and real-time images of the internal operation can be remotely monitored through mobile phones and computer clients.

15. Multi-functionality: can be used individually for sample flapping, pipeing, gradient dilution, Petri dish filling and other routine laboratory operations.





Item

Technical Specification

Model

HRH-B20

Sample throughput

20

Bacteria Testing Throughput

3 pouring + 1 spreading assay (e.g., colony count, coliforms, mold yeast, aureus)

Petri Dish Capacity

396

Sample Processing Speed

140 min (4 bacteria), 70 min (total colony & coliform)

Liquid Filling

<1% RSD (n=25@250mL transfer volume by weight). Accuracy ±2%

Flapping Homogenizing Speed

312 squeezes/sec

Robotic Arm

Dual robotic arms, accuracy 0.1mm

Gradient Dilution

10/100/1000 times gradient dilution, 5ml pipetting, Precision ≤1%RSD (n=10@ 5mL). Accuracy ± 2%

Agar pouring

3 agar filling ports, which can work independently with the shaking module. Agar volume and shaking speed can be set

Pipetting

Volume ≤ 5ml. Precision < 1% RSD (n=10 @ 5mL). Accuracy ± 1%

Air supply

30L, 5Bar

Power Supply

220VAC 50Hz

Weight

Approx. 400kgs

Dimensions

1540mm×760mm×2200mm
