Fully Automated DUSA Shaker

Application

Delivered Dose Uniformity Tests of MDIs and DPIs

TEL86-10-56370031

Description

Features

Specification

Standards

Video

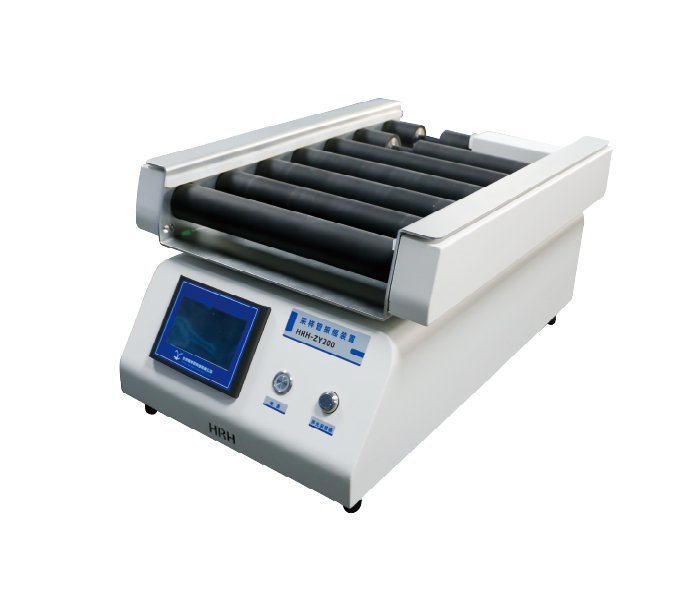

HRH-ZY200 fully automated DUSA shaker is a simple, economical instrument for rapid, repetitive recovery of dose uniformity sampling apparatus in delivered dose uniformity tests. The active ingredients can be fully dissolved in the solvent prior to analysis. Two modes and parameters can be set. When the same mode and parameters are set for the experiment, the device shakes DUSA tubes in a repetitive and controlled manner to dissolve drugs automatedly.

Used for MDIs/DPIs DUSA tubes, and can be placed directly on the tray, no need fasteners to fix.

Ensure consistent, controllable and repetitive in the process of dissolving drugs.

Small footprint, precise control, high accuracy and stability.

Touch screen control, easy and convenient operation.

The parameters of swing frequency and rolling speed can be set.

DPIs DUSA tube with pressure tap could also be placed together with DUSA tubes without pressure tap.





Dimensions（WxDxH） 415x615x285mm
Net weight 35KG
Power supply 220V，50HZ
Power rate 440W
Mode Swing, Roll, Swing+Roll
Swing speed 20-200 times/min
Rolling speed 10-20 circle/min
Max. running time 500hrs
